Ultra Red/Pure Green 12 Segment LED Light Bar for Instrument Panel Indicator
Product Overview
Light-Bo’s 12-segment LED light bar is engineered for clear, dynamic indication in instrument panels and home appliances, featuring a slim design (58×7×8mm) and dual-color options (red/pure green). With high luminous intensity (80-160mcd) and stable performance, it delivers reliable visual signaling for status updates, level indicators, or functional alerts. Configured with white segments on a black surface, this light bar balances low power consumption (1.8-3.2V/LED) with long lifespan, making it ideal for applications requiring continuous operation. RoHS compliant and easy to assemble, it supports customization in colors (blue, amber, white, etc.) to match diverse device aesthetics.

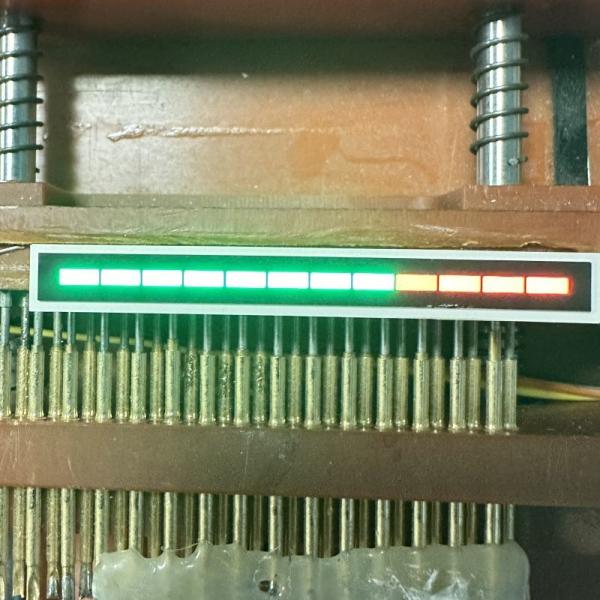

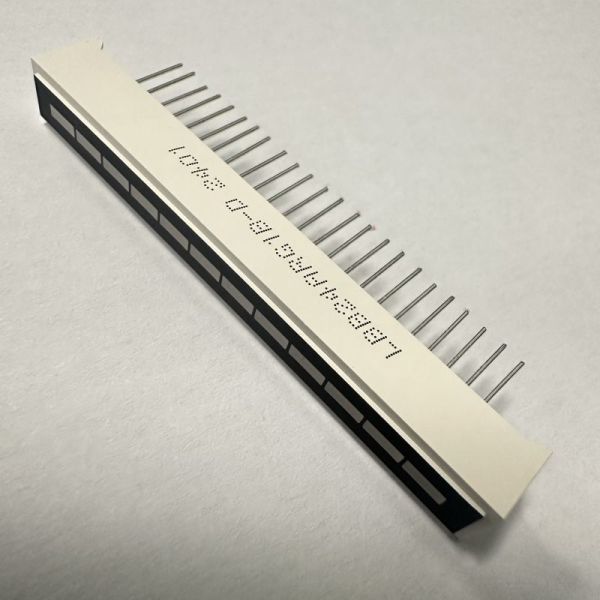

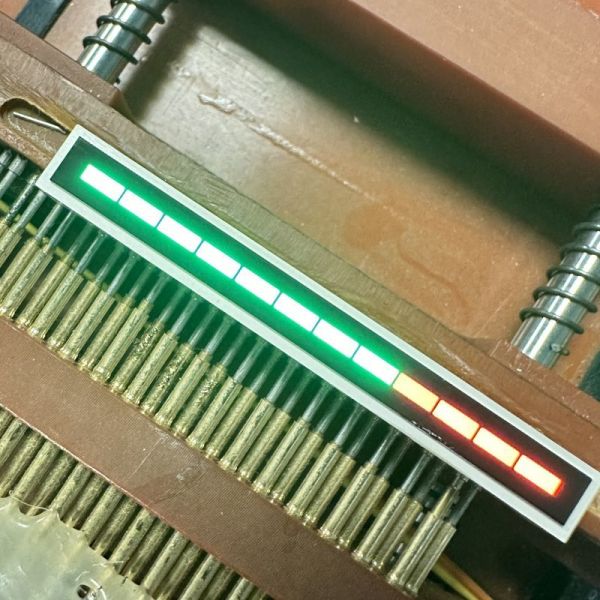

Product Image
Key Features
12-Segment Design: Enables flexible visual signaling (e.g., level indicators, progress bars, or status codes) in instrument panels and home appliances.
Dual-Color Emission: Red (630-635nm, 80-100mcd) and pure green (515-525nm, 120-160mcd) options, with additional colors available (blue, amber, white, orange, multi-color) for custom coding.
Slim & Compact: 58×7×8mm outer dimensions fit seamlessly into space-constrained instrument panels, without compromising visibility.
High Luminous Intensity: Ensures clear readability in both bright and dim environments, critical for monitoring device status at a glance.
Energy Efficiency: Low forward voltage (1.8-2.3V for red; 2.8-3.2V for green) and current (5-10mA/LED) minimize power usage, ideal for long-term operation.
Uniform Illumination: White segments on a black surface guarantee consistent light distribution across all 12 segments, enhancing visual clarity.
Easy Integration: IC compatibility and simple assembly streamline installation into PCBs, reducing manufacturing complexity.
RoHS Compliant: Meets global environmental standards, ensuring safety for household and industrial applications.
Technical Specifications
| Specification |
Red |
Pure Green |
| Brand Name |
Light-Bo |
Light-Bo |
| Type |
12-segment LED light bar |
12-segment LED light bar |
| Outer Dimensions |
58×7×8mm |
58×7×8mm |
| Emitting Color |
Red |
Pure Green |
| Wavelength |
630-635nm |
515-525nm |
| Luminous Intensity |
80-100mcd |
120-160mcd |
| Forward Voltage |
1.8-2.3V/LED |
2.8-3.2V/LED |
| Forward Current |
5-10mA/LED |
5-10mA/LED |
| Surface Design |
White segments on black surface |
White segments on black surface |
| Compliance |
RoHS Compliant |
RoHS Compliant |
Applications
Ideal for:
Instrument panels (status indicators, level meters)
Home appliances (progress displays, functional alerts)
Industrial control systems (operational status monitors)
Devices requiring dynamic 12-segment visual feedback
Order & Logistics
Minimum Order: 1000 pieces
Trade Term: EXW
Payment Terms: T/T, WU
Origin: Guangdong, China (Mainland)
Transport Options: Ocean, Air, Land
Production Capacity: 20,000 pcs/day
Packing: EPE + Carton (secure protection for slim segments during transit)
Delivery Time: 10-15 days
Absolute Maximum Ratings(Ta=25ºC)
| Parameter |
Symbol |
Ratings |
Unit |
| Forward Current(per dice) |
Ipm |
20 |
mA |
| Reverse Voltage(per dice) |
Vr |
5 |
V |
| Power Dissipation(per dice) |
Pm |
80 |
mW |
| Operating Temperature Range |
Topr |
-40~+85 |
ºC |
| Storage Temperature Range |
Tstg |
-40~+85 |
ºC |
| Solder Temperature(≤3 seconds) |
Th |
260 |
ºC
|
Code:Yellow Green- J
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.4 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensty |
Iv |
If=10mA |
30 |
|
40 |
mcd |
| Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
569 |
|
574 |
nm |
Code:Amber/Yellow -Y
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.5 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensty |
Iv |
If=10mA |
60 |
|
80 |
mcd |
| Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
585 |
|
595 |
nm
|
Code:Orange -F
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.4 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensty |
Iv |
If=10mA |
60 |
|
80 |
mcd |
| Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
600 |
|
605 |
nm |
Code:Super Bright Red -R
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensty |
Iv |
If=10mA |
50 |
|
60 |
mcd |
| Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
630 |
|
635 |
nm |
Code:Ultra Bright Red -UR
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensty |
Iv |
If=10mA |
80 |
|
100 |
mcd |
| Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
625 |
|
635 |
nm |
Code:Pure Green -G
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.6 |
|
3.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensty |
Iv |
If=10mA |
120 |
|
180 |
mcd |
| Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
515 |
|
525 |
nm |
Code:Ultra Bright Blue -BH
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.8 |
|
3.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensty |
Iv |
If=10mA |
120 |
|
140 |
mcd |
| Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
460 |
|
465 |
nm |
Code:Ultra Bright White -WH
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.8 |
|
3.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensty |
Iv |
If=10mA |
120 |
|
140 |
mcd |
| LED color Temperature |
K |
If=10mA |
5500 |
20 |
6800 |
K |
|
Chromaticity Coordinates
|
X/Y |
If=10mA |
0.29,0.32 |
|
0.30,0.33 |
nm |
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) stablished in 2006 , A company that integrates R & D, manufacturing and sales of optoelectronics LED Displays . ISO 9001 2015 Quality Management Systems certified company . With more than 15 years OEM and ODM experience .
LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.
Office and Factory Overview
FAQ(Frequently Asked Questions)
Q1 Are you trading company or manufacturer?
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ?
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test?
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time?
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,
we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment?
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices?
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list?
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q11 Can you do custom design products?
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else?
A: Yes , we will not show it or sell to others without your authorization.
Q13 What will be the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods?
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products?
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
