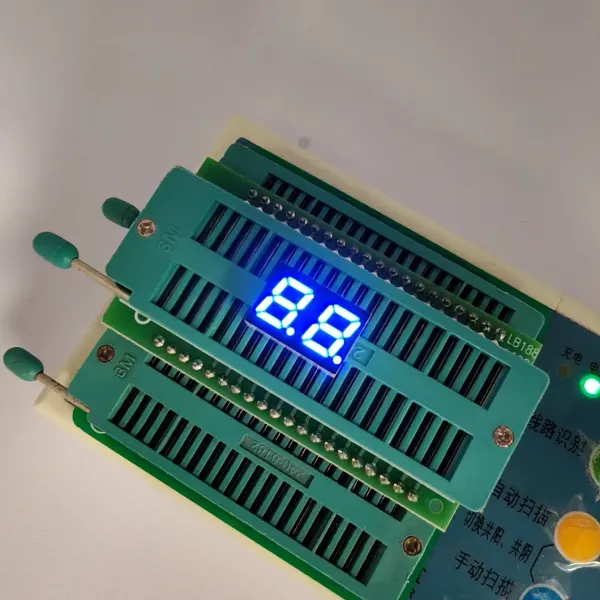

Ultra Bright Blue 2digit 7 Segment LED Display for Electronic Systems

  • 1
  • 2
  • 3

Shipping : By DHL, TNT, UPS, EMS, etc.

Features : Competitive Price with high quality

Display Color : Red/ Green/ Blue/ White/ Yellow

Led Color : ultra bright blue

Digits : 6

Dimensions : 40.18*12.8*7mm

Display Angle : 120°

Tube Chip Color : Ultra Bright Blue

Package : DIP

Lead Time : Very Fast

Brand Name : LIGHT-BO

Model Number : LB20281IBH1B

Certification : ISO9001&RoHS

Place of Origin : SHENZHEN，CHINA

MOQ : 1000

Price : Negotiate

Payment Terms : T/T,Western Union

Supply Ability : 20000pcs/days

Delivery Time : 15-20days

Packaging Details : EPE+Carton

Forward Voltage : 2.8-3.2V

Material : Plastic or epoxy resin

Luminous Intensity : 120-140mcd

Polarity : Common anode

Display Brightness : High

Storage Temperature : -40℃~+85℃

Working Temperature : +120C

Display_Type : Common anode

Package Type : Through Hole

Wavelength : 460-465nm

Direct Current : 20mA

Contact Now

Ultra Bright Blue 2-Digit 7 Segment LED Display
High-performance LED display designed for electronic systems requiring exceptional brightness and reliability.
Product Specifications
Part Number LB20281IBH1B Custom part numbers available
Digit Number 2 digit 2-6 digits available
Digit Height 0.28 inch 0.25-5.0 inch options
Color Blue White, red, pure green, yellow-green, orange, etc.
Size 15*10*6mm Custom sizes supported
Polarity Common Anode Common Cathode available
Life Span 80,000 hours
Free Samples Supported
Ultra Bright Blue 2digit 7 Segment LED Display for Electronic Systems Ultra Bright Blue 2digit 7 Segment LED Display for Electronic Systems
Key Features
  • High Efficiency: Exceptional brightness with low forward voltage for optimal energy savings
  • Optimal Power Management: Ultra-low power consumption ideal for battery-operated devices
  • Visual Clarity & Uniformity: Balanced brightness and consistent luminance across all segments
  • Seamless Integration: Industrial-standard dimensions for easy panel mounting
  • Superior Readability: High contrast ratio ensures visibility in bright environments
  • Reliable Performance: Stable operation across temperature and voltage variations
  • Long-Term Durability: 80,000-hour operational life reduces maintenance needs
  • Global Compliance: Meets RoHS and REACH international regulations
Technical Parameters
Yellow Green (Code: J/JU) - Dynamic, vivid colors for enhanced visual aesthetics
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 30 40 mcd
Amber/Yellow (Code: Y) - Warm, inviting glow with magnetic appeal
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.5 V
Luminous Intensity Iv If=10mA 60 80 mcd
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Operating Temperature Range Topr -40~+85 ºC
Manufacturer Profile
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leader in OEM and ODM services since 2006. Certified under ISO 9001:2015, our 15+ year legacy demonstrates our commitment to innovation and quality. We provide cost-effective custom solutions that enhance competitive advantages in global markets.
Applications
Ultra Bright Blue 2digit 7 Segment LED Display for Electronic Systems
Our LED displays integrate seamlessly into diverse applications including home appliances, temperature and humidity controllers, refrigerator systems, thermostats, and HVAC equipment.
Certifications
Ultra Bright Blue 2digit 7 Segment LED Display for Electronic Systems
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are an original manufacturer with over 20 years of experience in optoelectronic LED displays.
Q2: What is your main products?
Our products include 7 Segment LED displays, SMD LED displays, dot matrix displays, custom LED displays, and various LED components.
Q3: What is your MOQ?
Our MOQ is 1000 pieces, but we accept sample orders and smaller quantities for initial orders.
