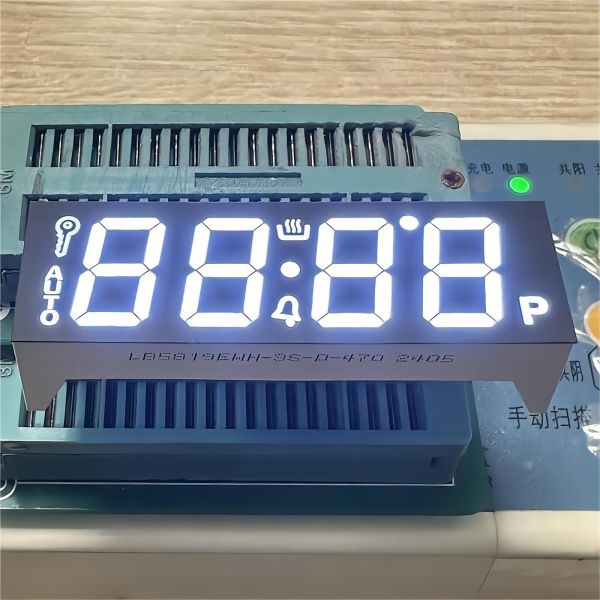

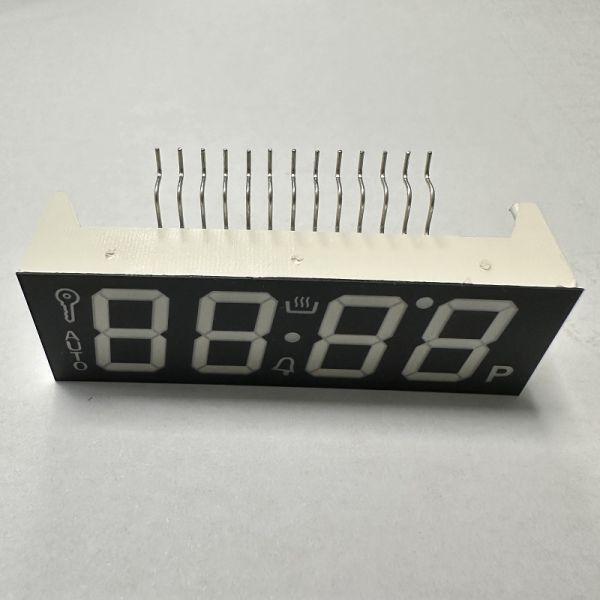

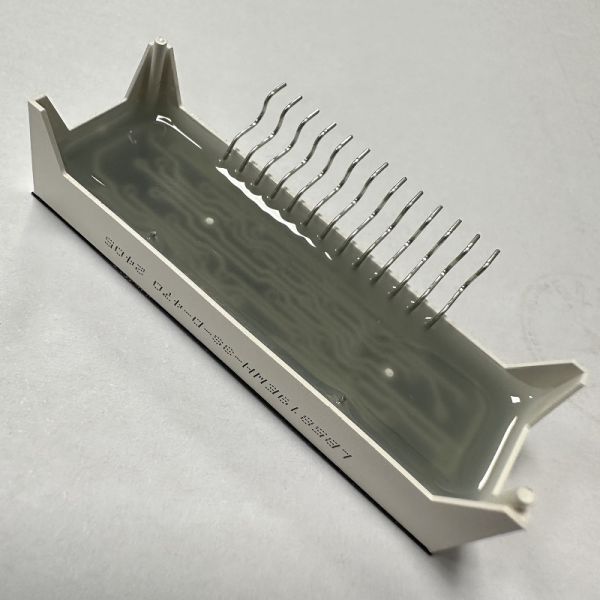

Ultra Bright White 4-Digit 7-Segment Common Cathode LED Display for Oven Timers
High-temperature-resistant LED display engineered specifically for oven timers, temperature controllers, and home appliances. Features exceptional heat tolerance, superior visibility, and reliable performance in demanding kitchen environments.
Key Features
High-Temperature Resistance for Oven Use
- Wide working temperature range (+105°C to +120°C) withstands oven-side heat
- Fast heat-dissipation design maintains stable performance at maximum oven temperatures
- Protective film shields segments from kitchen grease, food splatters, and heat-induced discoloration
Superior Visibility for Kitchen Scenarios
- Ultra bright white illumination ensures clear readability in various lighting conditions
- Yellow segments on black face provide high contrast to eliminate washout
- Wide viewing angle maintains readability from off-center positions
Energy Efficiency & Reliable Performance
- Low power consumption minimizes energy use for oven timers
- Stable operation withstands temperature fluctuations and minor vibrations
- Long lifespan (50,000+ hours) matches 8-10 year service life of most ovens
Easy Integration & Versatility
- Common cathode polarity works with standard driver ICs (TM1637, HT1621, MAX7219)
- Designed for PCB direct-mounting with automated production compatibility
- Multiple color options available including red, blue, green, amber, and orange
- RoHS compliant for global market safety standards
Technical Specifications
| Category |
Parameter |
Specification |
| Basic Design |
Display Type |
4-Digit 7-Segment LED Display |
| Basic Design |
Polarity |
Common Cathode |
| Basic Design |
Digit Height |
14.2mm (0.56 inch) |
| Basic Design |
Package Dimensions |
58.2 × 19 × 13.8mm |
| Basic Design |
Face/Segment Finish |
Black Face + Yellow Segments + Protective Film |
| Optical Performance |
Emitting Color |
Primary: Ultra Bright White; Optional: Red/Blue/Green/Amber/Orange |
| Environmental Resistance |
Working Temperature |
+105°C to +120°C |
| Electrical Parameters |
Forward Voltage (VF) |
2.8-3.2V per LED (white/blue/green); 1.8-2.2V (red/amber/orange) |
| Electrical Parameters |
Forward Current |
5-10mA per LED |
| Quality & Compliance |
Core Advantages |
High temp resistance, fast heat-dissipation, stable performance, wide viewing angle |
| Quality & Compliance |
Compliance |
RoHS Compliant |
Applications
This display is purpose-built for high-heat and kitchen devices, including:
- Oven Timers: Electric/gas ovens, toaster ovens, convection ovens
- Temperature Controllers: Industrial heat chambers, sous vide machines, electric grills
- Home Appliances: Microwaves, coffee makers, air fryers
- Instrument Panels: High-temp sensors, battery chargers
Why Choose This Display for Ovens?
- Oven-safe heat resistance prevents failure in high-heat environments
- High brightness and contrast ensure accurate reading of critical cooking times and temperatures
- Durable design with protective film maintains clarity through years of heavy use
- Easy integration with existing oven PCBs saves manufacturing time
- RoHS certification ensures compliance with global kitchen appliance safety standards
Order & Logistics Information
Minimum Order Quantity (MOQ): 300 pieces for standard ultra bright white models; 500 pieces for custom colors.
Packing: Anti-static EPE + reinforced cartons for component protection during shipping.
Delivery Time: 5-7 days for standard orders; 10-12 days for custom color variants.
Transport: Express (FedEx/DHL), Air, or Ocean shipping options available.
Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo)
Established in 2006, we are an ISO 9001:2015 certified manufacturer specializing in R&D, manufacturing, and sales of optoelectronic LED displays. With over 15 years of OEM and ODM experience, LightBo provides high-quality, cost-effective customized solutions to enhance customer competitiveness.
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.
Q2: What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, and LED Backlights.
Q3: What is your MOQ?
A: Our MOQ is 1000 pieces, but we can accept sample orders and small orders with quantity less than our MOQ.
Q4: Before placing order, can I get some samples for test?
A: Yes. We can provide 5-10 free samples for testing, with freight cost borne by the customer.
Q5: How long is your delivery time?
A: Delivery time is about 10-20 days, depending on order quantity and raw materials. Urgent orders with available materials can be ready in 7-10 days.
